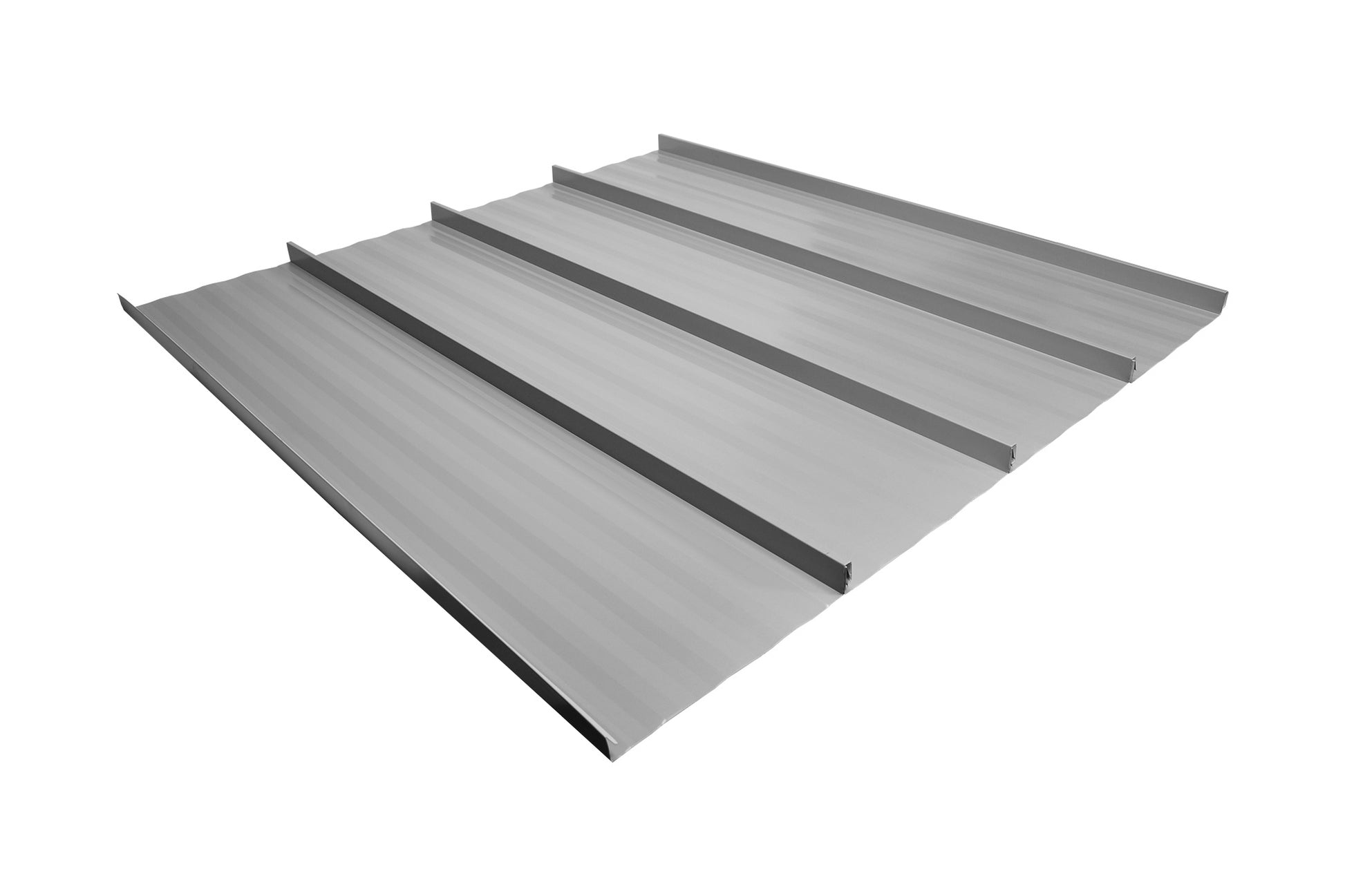

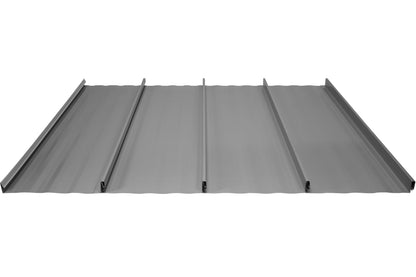

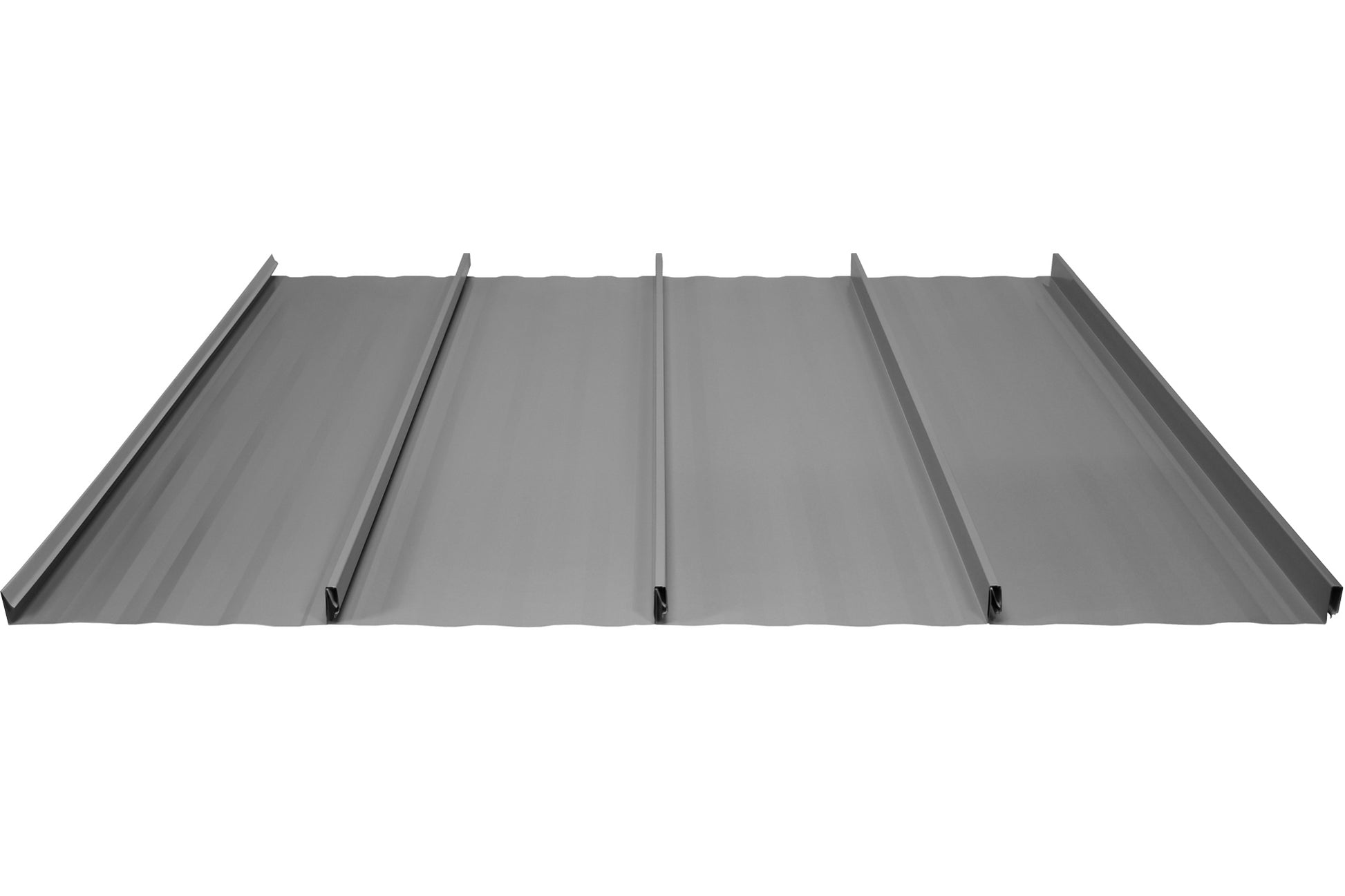

STANDING SEAM PANELS

Coverage Width = 14”
Rib Height = 1 ¾”
Rib Shape = Standing Seam
Available Gauges = 26 or 24 (depending on color)
Material = Galvalume® Coated Steel
Installation Substrates = Solid Substrate Only
Fasteners = Concealed Fastener Clip
Color Finish = Sherwin Williams Weather XL

GALVALUME: WHAT IS IT?

Galvalume is 55% Al-Zn (aluminum – zinc) coated sheet steel that is ideally suited for most types of roofing applications. An estimated 40 billion square feet of Galvalume now covers buildings in all kinds of climates and environments throughout the United States, Canada and Mexico, as well as Europe, Asia and Australia. Galvalume is an ideal material for roofing because of its extraordinary outdoor corrosion resistance and resulting long life. It is extremely popular due to its versatility, ease of use, aesthetics and long-term performance.

Our standing seam panel utilizes a clip system to attach to a solid substrate, creating a clean look and reducing the opportunity for leakage.  This standing seam panel has an extra tall rib height of 1 ¾” that creates a high-end appearance.

Rolled standing seam metal in 26-gauge galvalume for your metal roof or siding

Our calculator makes it EASY!

Just enter your preferred lengths and quantities!

 Enter your lengths in decimal form.

for example: 16'-7" would be 16.58   and   12'-3" would be 12.25.

 Here is a guide:

1 INCH = 0.08
2 INCH = 0.17
3 INCH = 0.25
4 INCH = 0.33
5 INCH = 0.42
6 INCH = 0.50
7 INCH = 0.58
8 INCH = 0.67
9 INCH = 0.75
10 INCH = 0.83
11 INCH = 0.92
